MTS Technik

MTS Technik koiloveri Stance Gold with front camber plates - BMW 5 (E28)

KODS :MTSGWBM32-S

€949,00 EUR

Akcija Nav noliktavā, raksti siadkracing@gmail.com, lai pasūtītu.

ar PVN. Piegāde tiek aprēķināta apmaksas laikā

Front strut diameter Ø52 mm Ø55 mm

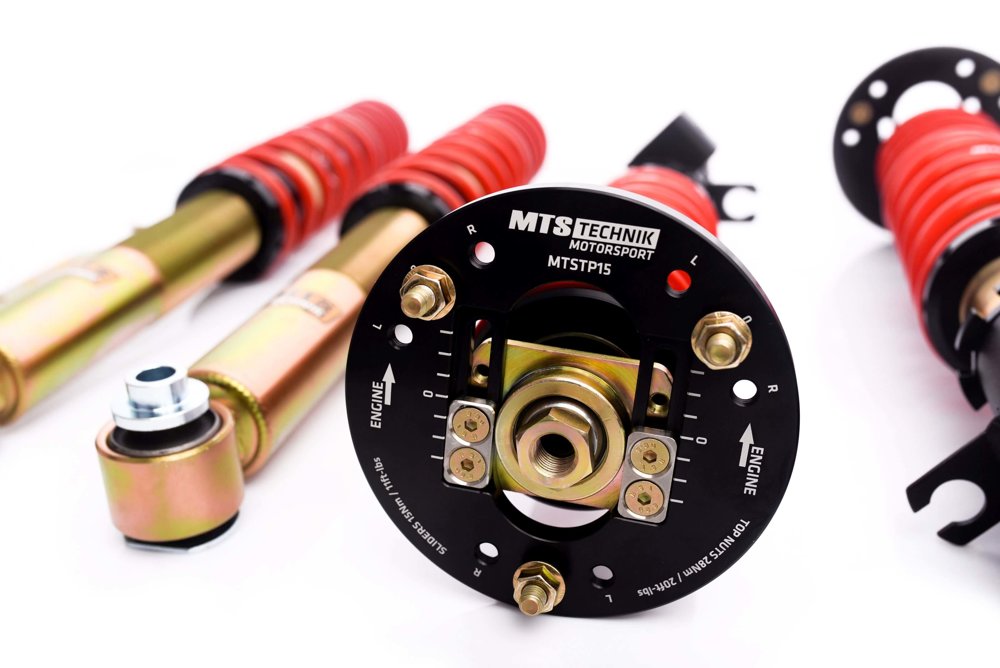

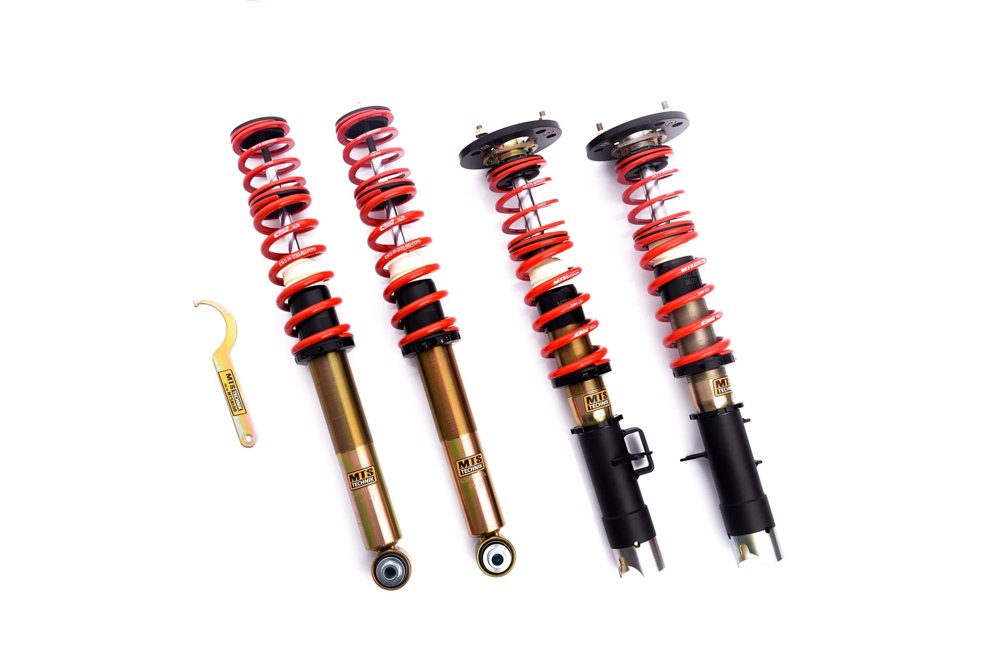

MTS Technik Stance coilover kit with Gold housing, with front camber plates, for BMW 5 (E28).

SeriesStance

HousingGold

Camber platesfront

Lowering front25 - 110 mm

Lowering rear25 - 90 mm

TÜVno

Please note — by version:

Ø52 mm (MTSGWBM32-S): strut diameter at the front axle of 52 mm
Ø55 mm (MTSGWBM19-S): strut diameter at the front axle of 55 mm

Specifications

Series	Stance
Housing	Gold
Camber plates / top mounts	Front camber plates
Lowering front	25 - 110 mm
Lowering rear	25 - 90 mm
Max. axle load front?	max 930 kg
Max. axle load rear?	max 1030 kg
Main spring rate	GWFE81 (80 N/mm) GWFE84 (70 N/mm)
Helper spring rate	GWHE02 (20 N/mm)
TÜV certificate	no

Versions

Part number	Front strut diameter
MTSGWBM32-S	Ø52 mm
MTSGWBM19-S	Ø55 mm

Vehicle fitment

All versions fit the vehicles listed below. Choose the version by Front strut diameter.

?How to check the axle loads of your car

Be sure to check the maximum permissible loads on both axles of your car. This is crucial information! Only if these values are not exceeded, you have a guarantee that the lowering of the car and the operation of the suspension will be consistent with the catalog. You will find this data only on the car's rating plate. The commonly used coding is 1 - XXX kg / 2 - XXX kg, where respectively "1 -" is the maximum permissible front axle load and "2 -" is the maximum permissible rear axle load. Write down these values and compare them with the catalog. If any of them exceed the value from the catalog, it means that the product is not intended for your car.

Vehicle / engine	Years · power · drive
518 / 518 i / 520 i / 524 d / 524 td / 525 e / 525 i / 528 i / 535 i	05/81 - 12/87 63 - 162 kW / 86 - 220 HP RWD

Features

Eibach springsCoilover springs made by Eibach, the world leader in the sport springs industry.

Anti-corrosion protection yellow galvanizedDouble zinc plated steel shock absorbers as well as anodized aluminum adjusters and caps to ensure increased corrosion resistance.

Top mounts with camber adjustmentThe camber plates allow the wheel angle adjustment and increase the precision of driving.

2 years warranty2 year warranty with no mileage limit to confirm high quality.

hexaCOIL adjustable spring perchInnovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.

Independent height adjustment at the bottom mountingAdditional height adjustment at the bottom mounting, allowing the car's height reduction to be changed, without interfering with the spring operation characteristics.

Twin-tube constructionThe use of twin-tube technology guarantees stable shock absorber performance.

Gas technologyPressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.

Specially selected type of threadSpecially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.

High qualitySuspension components characterized by increased corrosion resistance and made of the highest quality materials.

Product notes

2Front and rear axle height adjustable (threaded shock absorber housing).

21If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.

24During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.

26Independent height adjustment at the lower brackets on the front dampers.

28The kit includes 2 upper front camber plates.

29The installation requires the use of OE front struts - they should be cut and welded as described in the attached manual.

32In some cases additional OE-parts for the installation of the suspension components are required. Those are not included in the set.

33Including M-Technik.

65Suspension compatible only with a rear top mount with an internal diameter of 78mm - OEM number: 33521117657 or 33521126987. It is possible to mount the suspension to cars equipped with other top mounts, but original parts marked with one of the above numbers will be required.

66In the case of cars equipped with Nivo, it will be required to replace the rear top mounts with OEM: 33521117657 or 33521126987.
