MTS Technik
MTS Technik koiloveri Street Gold - Audi A5 / A5 Sportback (F5)
MTS Technik koiloveri Street Gold - Audi A5 / A5 Sportback (F5)
SKU:MTSGWAU56
Regular price
€699,00 EUR
Regular price
Sale price
€699,00 EUR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

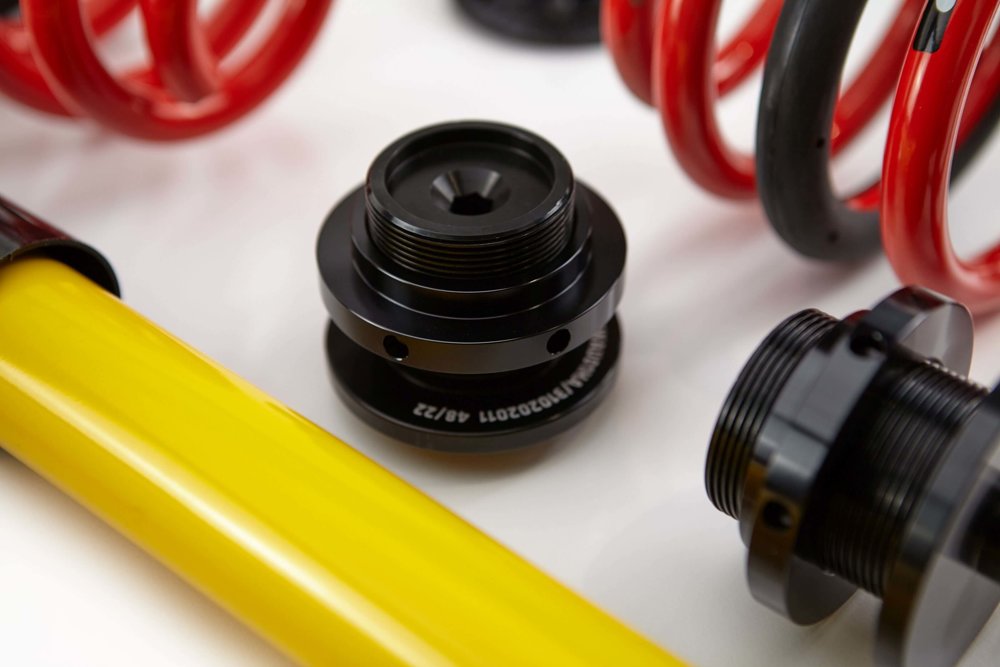

MTS Technik Street coilover kit with Gold housing for Audi A5 / A5 Sportback (F5).
SeriesStreet
HousingGold
Camber platesno
Lowering front35 - 60 mm
Lowering rear40 - 65 mm
TÜVyes
Please note: Front shock absorber housing: 48,5 mm
Specifications
| Part number | MTSGWAU56 |
| Series | Street |
| Housing | Gold |
| Camber plates / top mounts | Without |
| Lowering front | 35 - 60 mm |
| Lowering rear | 40 - 65 mm |
| Main spring rate | GWFE218 (80 N/mm) GWFE252HA (64 - 110 N/mm) |
| Helper spring rate | GWHE02 (20 N/mm) |
| TÜV certificate | yes |
Vehicle fitment
This product fits every vehicle listed below.
?How to check the axle loads of your car
Be sure to check the maximum permissible loads on both axles of your car. This is crucial information! Only if these values are not exceeded, you have a guarantee that the lowering of the car and the operation of the suspension will be consistent with the catalog. You will find this data only on the car's rating plate. The commonly used coding is 1 - XXX kg / 2 - XXX kg, where respectively "1 -" is the maximum permissible front axle load and "2 -" is the maximum permissible rear axle load. Write down these values and compare them with the catalog. If any of them exceed the value from the catalog, it means that the product is not intended for your car.
| Vehicle / engine | Years · power · drive | Max. axle load? |
|---|---|---|
A5 (F5)1.4 TFSI / 2.0 TDI / 2.0 TFSI / 3.0 TDI / 30 TDI MILD HYBRID / 35 TFSI Mild Hybrid / 40 TDI / 40 TFSI Mild Hybrid / 45 TFSI Mild Hybrid
|
06/16 - 100 - 185 kW / 136 - 252 HP FWD |
front max 1135 kg rear max 1100 kg |
A5 (F5)2.0 TDI quattro / 2.0 TFSI quattro / 3.0 TDI quattro / 40 TDI Mild Hybrid quattro / 40 TDI quattro / 40 TFSI Mild Hybrid quattro / 45 TFSI Mild Hybrid quattro / 50 TDI quattro
|
06/16 - 140 - 210 kW / 190 - 286 HP AWD |
front max 1135 kg rear max 1215 kg |
A5 (F5)RS5 quattro
|
06/16 - 331 kW / 450 HP AWD |
front max 1240 kg rear max 1220 kg |
A5 (F5)S5 quattro / S5 TDI Mild Hybrid quattro
|
06/16 - 251 - 260 kW / 341 - 354 HP AWD |
front max 1240 kg rear max 1220 kg |
A5 Sportback (F5)1.4 TFSI / 2.0 TDI / 2.0 TFSI / 2.0 TFSI g-tron / 3.0 TDI / 30 TDI MILD HYBRID / 35 TDI / 35 TFSI Mild Hybrid / 40 TDI / 40 TFSI g-tron / 40 TFSI Mild Hybrid / 45 TFSI Mild Hybrid
|
06/16 - 100 - 185 kW / 136 - 252 HP FWD |
front max 1145 kg rear max 1215 kg |
A5 Sportback (F5)RS5 quattro
|
06/16 - 331 kW / 450 HP AWD |
front max 1240 kg rear max 1220 kg |
A5 Sportback (F5)S5 quattro
|
06/16 - 260 kW / 354 HP AWD |
front max 1240 kg rear max 1220 kg |
Features
Eibach springsCoilover springs made by Eibach, the world leader in the sport springs industry.
Anti-corrosion protection yellow galvanizedDouble zinc plated steel shock absorbers as well as anodized aluminum adjusters and caps to ensure increased corrosion resistance.
2 years warranty2 year warranty with no mileage limit to confirm high quality.
hexaCOIL adjustable spring perchInnovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
Twin-tube constructionThe use of twin-tube technology guarantees stable shock absorber performance.
Gas technologyPressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.
Specially selected type of threadSpecially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.
High qualitySuspension components characterized by increased corrosion resistance and made of the highest quality materials.
Product notes
3Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).
21If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
24During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
35Rear thread adjustment block is mounted on the top.
39Installation is also possible for vehicles with electronic damping force adjustment. The electronic system must be deactivated in this case.
73For easier height adjustment, we recommend removing the height adjustment, changing the position of the spring plate and reinstalling the height adjustment on the vehicle.
