MTS Technik

MTS Technik koiloveri Street Gold - Volkswagen TIGUAN ALLSPACE (BW2/BJ2) (AWD + FWD)

SKU:MTSGWVW16

€749,00 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

Rear axle Standard multilink

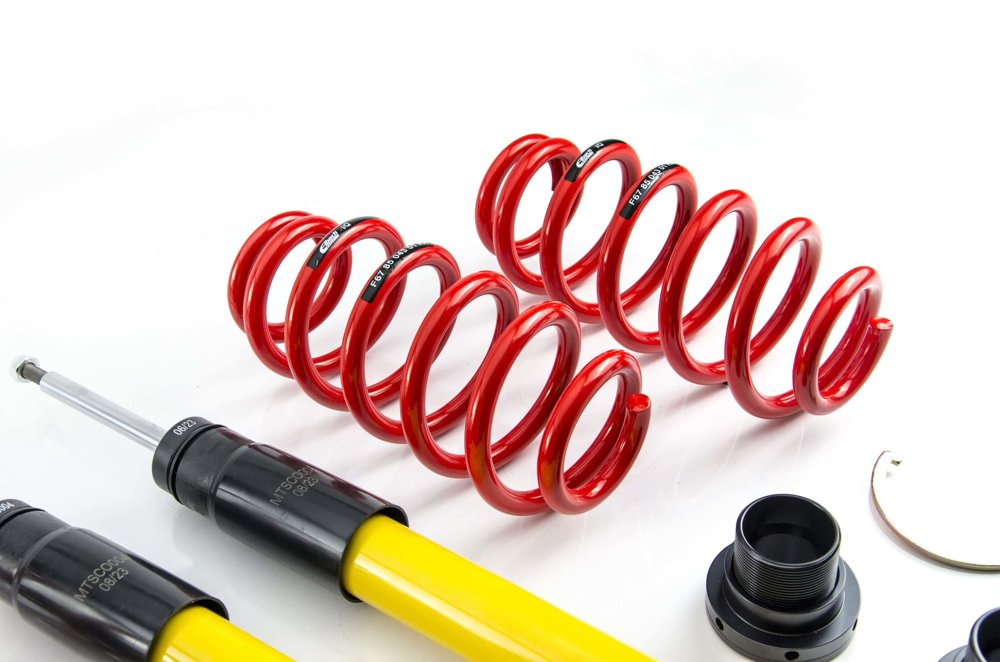

MTS Technik Street coilover kit with Gold housing for Volkswagen TIGUAN ALLSPACE (BW2/BJ2).

SeriesStreet

HousingGold

Camber platesno

Lowering front20 - 45 mmby version

Lowering rear20 - 50 mmby version

TÜVyes

Please note — by version:

multilink (MTSGWVW18): multilink rear suspension

Specifications

Series	Street
Housing	Gold
Camber plates / top mounts	Without
TÜV certificate	yes

Versions

Part number	Rear axle	Max. axle load rear?	Lowering front	Lowering rear	Main spring rate
MTSGWVW16	Standard	1251-1400 kg	25 - 45 mm	25 - 50 mm	GWFE273VA (45 N/mm) GWFE272HA (60 N/mm)
MTSGWVW18	multilink	1101-1250 kg / max 1250 kg	20 - 40 mm	20 - 45 mm	GWFE273VA (45 N/mm) GWFE274HA (55 N/mm)

Vehicle fitment

All versions fit the vehicles listed below. Choose the version by Rear axle.

?How to check the axle loads of your car

Be sure to check the maximum permissible loads on both axles of your car. This is crucial information! Only if these values are not exceeded, you have a guarantee that the lowering of the car and the operation of the suspension will be consistent with the catalog. You will find this data only on the car's rating plate. The commonly used coding is 1 - XXX kg / 2 - XXX kg, where respectively "1 -" is the maximum permissible front axle load and "2 -" is the maximum permissible rear axle load. Write down these values and compare them with the catalog. If any of them exceed the value from the catalog, it means that the product is not intended for your car.

Vehicle / engine	Years · power · drive	Version Standard?	Version multilink?
1.5 TSI / 2.0 TDI / 2.0 TSI	03/17 - 110 - 137 kW / 150 - 186 HP FWD	front 1101-1240 kg rear 1251-1400 kg	front 1101-1240 kg rear 1101-1250 kg
2.0 TDI 4motion / 2.0 TSI 4motion	03/17 - 110 - 180 kW / 150 - 245 HP AWD	front max 1240 kg rear 1251-1400 kg	front max 1240 kg rear max 1250 kg

Features

Eibach springsCoilover springs made by Eibach, the world leader in the sport springs industry.

Anti-corrosion protection yellow galvanizedDouble zinc plated steel shock absorbers as well as anodized aluminum adjusters and caps to ensure increased corrosion resistance.

2 years warranty2 year warranty with no mileage limit to confirm high quality.

hexaCOIL adjustable spring perchInnovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.

Twin-tube constructionThe use of twin-tube technology guarantees stable shock absorber performance.

Gas technologyPressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.

Specially selected type of threadSpecially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.

High qualitySuspension components characterized by increased corrosion resistance and made of the highest quality materials.

Product notes

2Front and rear axle height adjustable (threaded shock absorber housing).

21If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.

24During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.

73For easier height adjustment, we recommend removing the height adjustment, changing the position of the spring plate and reinstalling the height adjustment on the vehicle.

136In vehicles where the lower spring seat is integrated with the spring and cannot be removed, the lower spring seat VW part number 5Q0 512 297 F must be used.
