MTS Technik koiloveri Street Gold with front camber plates - BMW 7 (E23) (original struts required)
MTS Technik koiloveri Street Gold with front camber plates - BMW 7 (E23) (original struts required)
SKU:MTSGWBM91
Regular price
€1.149,00 EUR
Regular price
Sale price
€1.149,00 EUR
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

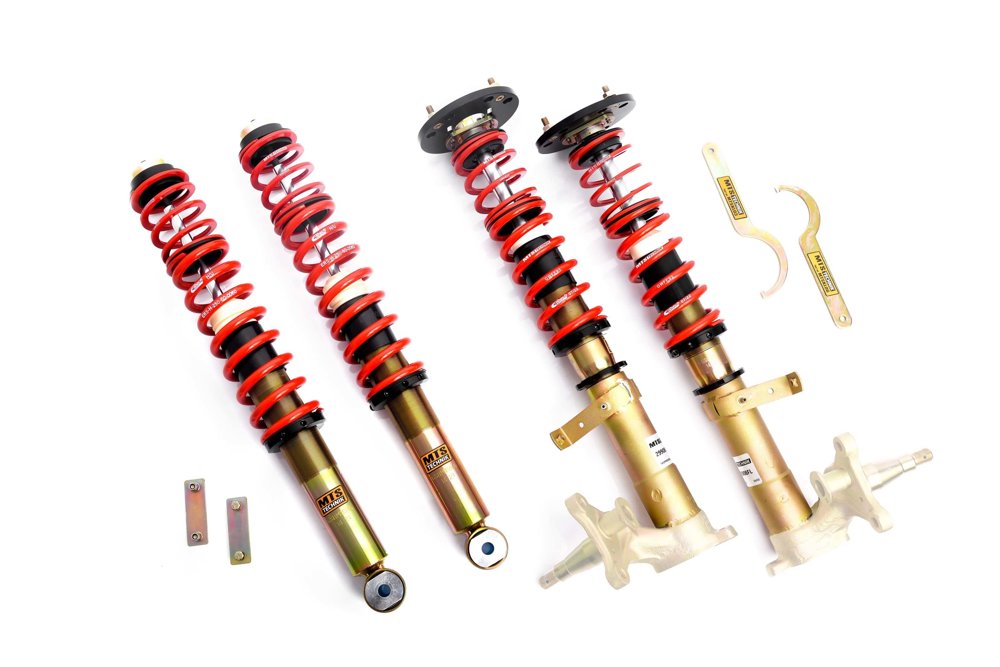

MTS Technik Street coilover kit with Gold housing, with front camber plates, for BMW 7 (E23).
SeriesStreet
HousingGold
Camber platesfront
Lowering front35 - 95 mm
Lowering rear20 - 110 mm
TÜVyes
Please note: original front axle struts need to be sent in advance, strut diameter at the front axle of 52 mm
Specifications
| Series | Street |
| Housing | Gold |
| Camber plates / top mounts | Front camber plates |
| Lowering front | 35 - 95 mm |
| Lowering rear | 20 - 110 mm |
| Max. axle load front? | max 1040 kg |
| Main spring rate | GWFE93 (70 N/mm) GWFE101 (60 N/mm) |
| Helper spring rate | GWHE02 (20 N/mm) |
| TÜV certificate | yes |
Versions
| Part number | Years | Max. axle load rear? |
|---|---|---|
| MTSGWBM91 | 05/77 - 08/81 | max 1110 kg |
| MTSGWBM87 | 09/81 - 04/88 | max 1150 kg |
Vehicle fitment
Each version fits the vehicles listed below within its production years. Choose the version by Years.
?How to check the axle loads of your car
Be sure to check the maximum permissible loads on both axles of your car. This is crucial information! Only if these values are not exceeded, you have a guarantee that the lowering of the car and the operation of the suspension will be consistent with the catalog. You will find this data only on the car's rating plate. The commonly used coding is 1 - XXX kg / 2 - XXX kg, where respectively "1 -" is the maximum permissible front axle load and "2 -" is the maximum permissible rear axle load. Write down these values and compare them with the catalog. If any of them exceed the value from the catalog, it means that the product is not intended for your car.
| Vehicle / engine | Years · power · drive |
|---|---|
728 / 728 i / 730 / 732 i / 733 i / 735 i / 745 i |
05/77 - 08/81 125 - 185 kW / 170 - 252 HP RWD |
728 / 728 i / 730 / 732 i / 733 i / 735 i / 745 i |
09/81 - 04/88 125 - 185 kW / 170 - 252 HP RWD |
Features
Eibach springsCoilover springs made by Eibach, the world leader in the sport springs industry.
Anti-corrosion protection yellow galvanizedDouble zinc plated steel shock absorbers as well as anodized aluminum adjusters and caps to ensure increased corrosion resistance.

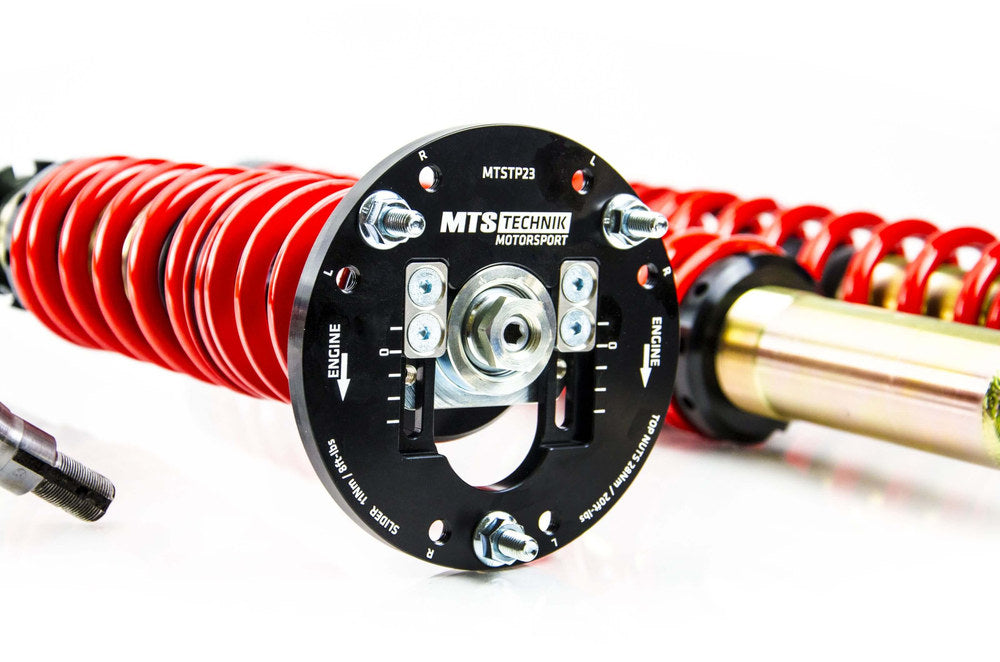

Top mounts with camber adjustmentThe camber plates allow the wheel angle adjustment and increase the precision of driving.
2 years warranty2 year warranty with no mileage limit to confirm high quality.
hexaCOIL adjustable spring perchInnovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.
Independent height adjustment at the bottom mountingAdditional height adjustment at the bottom mounting, allowing the car's height reduction to be changed, without interfering with the spring operation characteristics.
Twin-tube constructionThe use of twin-tube technology guarantees stable shock absorber performance.
Gas technologyPressurized gas presses the hydraulic fluid, eliminating the "foaming" effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.
Specially selected type of threadSpecially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.
High qualitySuspension components characterized by increased corrosion resistance and made of the highest quality materials.
Product notes
21If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
24During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
26Independent height adjustment at the lower brackets on the front dampers.
28The kit includes 2 upper front camber plates.
32In some cases additional OE-parts for the installation of the suspension components are required. Those are not included in the set.
33Including M-Technik.
64After the purchase, the original front axle struts should be sent to the headquarters of MTS Technik. Prior to shipment, all elements such as hubs, bearings, covers, shock absorber inserts, bolts and nuts should be dismantled. If the axle struts are delivered without prior disassembly of the above-mentioned parts or if MTS Technik finds any damage, such as broken column bolts, the axle struts will be returned or an additional fee will be charged.
66In the case of cars equipped with Nivo, it will be required to replace the rear top mounts with OEM: 33521117657 or 33521126987.
68After welding the customer-supplied axle struts and MTS Technik coilover suspension, the product is personalized according to the customer's needs. Thus, the right to withdraw from the conclusion of a distance sales contract is excluded (no possibility of returning the goods).
69The axle struts delivered to us will be cleaned of paint, welded and then secured with zinc. Please provide the original axle struts with the original paint, even if it is in poor condition. Please do not paint the axle struts before shipping!
133Available for delivery only within the European Union.
Notes by version
57Only suitable for vehicles manufactured from 09/1981.
Years: 09/81 - 04/88
Years: 09/81 - 04/88
65Suspension compatible only with a rear top mount with an internal diameter of 78mm - OEM number: 33521117657 or 33521126987. It is possible to mount the suspension to cars equipped with other top mounts, but original parts marked with one of the above numbers will be required.
Years: 09/81 - 04/88
Years: 09/81 - 04/88
67Suspension compatible only with a rear top mount with an inner diameter of 83mm - OEM number: 33521117997.
Years: 05/77 - 08/81
Years: 05/77 - 08/81
Downloads
For all versions
For each version
| Part number · Years | Documents for this version |
|---|---|
MTSGWBM9105/77 - 08/81
|
PDFSpare part listPDFInstallation manual |
MTSGWBM8709/81 - 04/88
|
PDFSpare part listPDFInstallation manual |
